    TT-02RR Chassis Kit (RC Limited)
  • Status Discontinued
  • Qty
  • Price $152.57 USD
  • Subtotal
Close Buy Now

Discontinued

TT-02RR Chassis Kit (RC Limited)

by Tamiya

$152.57 USD

This item is discontinued and is not expected to come back into stock.

Description

This is a injection plastic and metal radio or remote-controlled car model kit.


From the manufacturer:

RRace-Spec TT-02

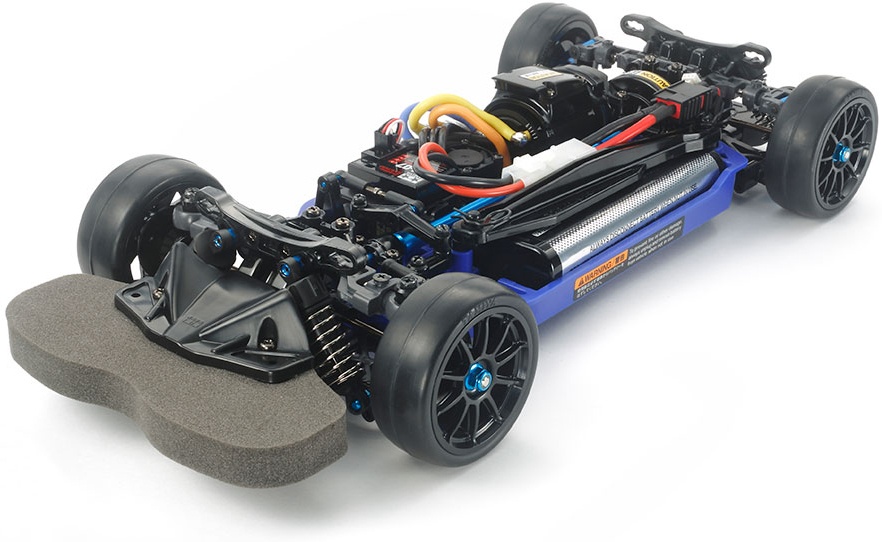

This R/C model assembly kit is a tuned variant of the TT-02 shaft-driven 4WD chassis, bristling with option parts: oil-filled gear differential units offer near infinite setup possibilities, adjustable front and rear upper arms allow alteration of camber, while the hard lower deck is molded in a stylish blue. Also in the kit are aluminum propeller shaft and rear upright components, high performance CVA oil dampers, 10-spoke wheels, medium narrow slick tires (with inner sponges) and full ball bearings.

Featured Components

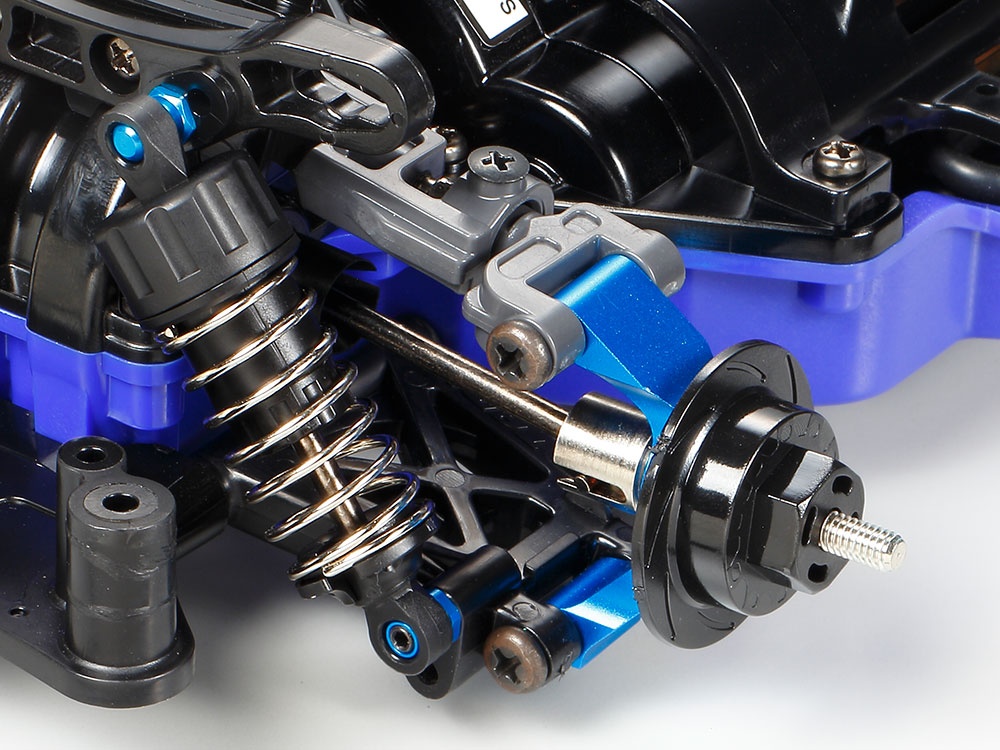

  • Aluminum Rear Uprights (3-degree Toe-In)

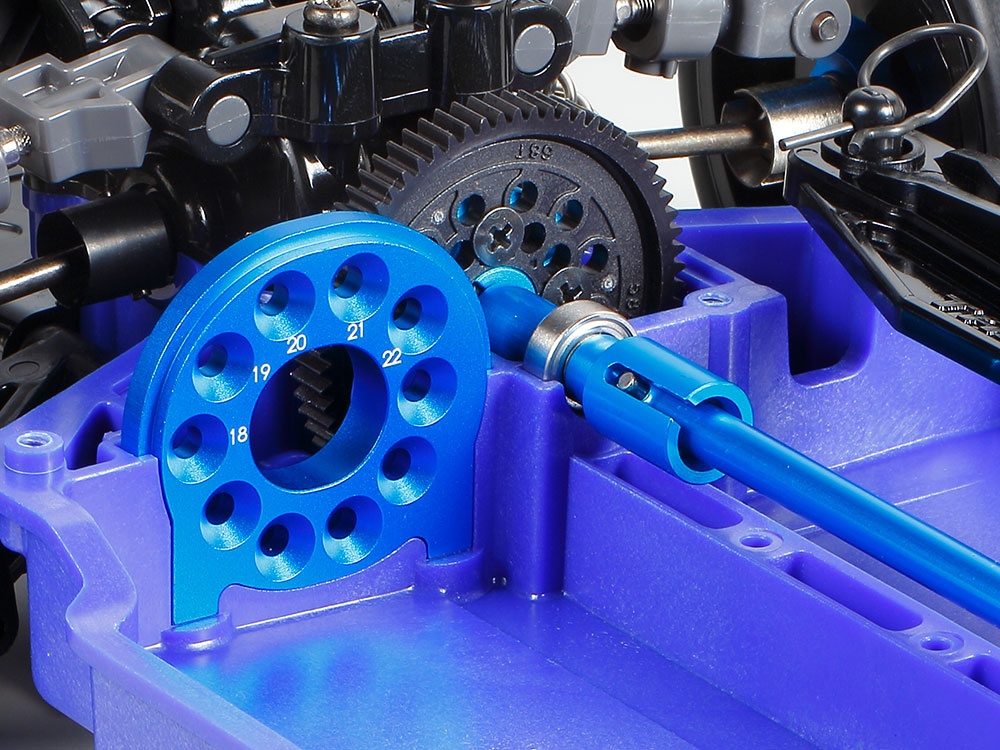

  • Aluminum Motor Mount
  • TT-02 Aluminum Propeller Joints
  • TT-02 Aluminum Propeller Shaft
  • TT-02 High-Speed Gear Set
  • TT-02 Full Ball Bearing Set
  • Metal Drive Shafts, Wheel Axles & Gearbox Joints
  • 4mm Aluminum Flanged Lock Nuts (Blue)
  • 5mm Aluminum Short Ball Connector Nuts (Blue)
  • 5mm Aluminum Ball Connectors (Blue)
  • Medium-Narrow Racing Slick Tires
  • CVA Dampers & Springs

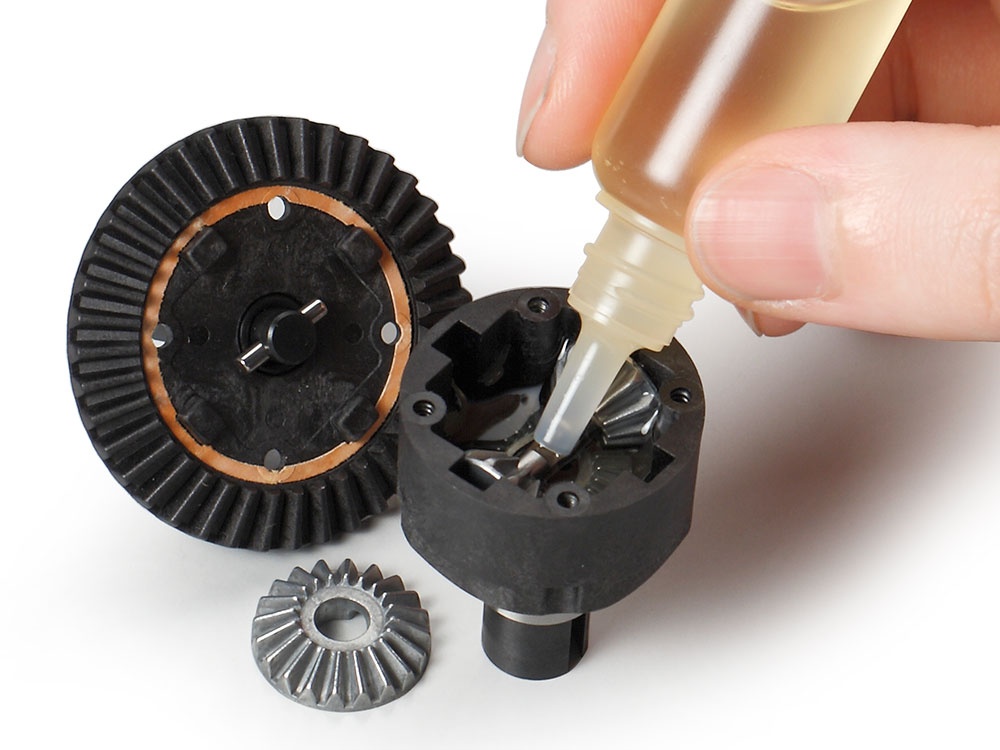

  • Oil-Filled Gear Differentials

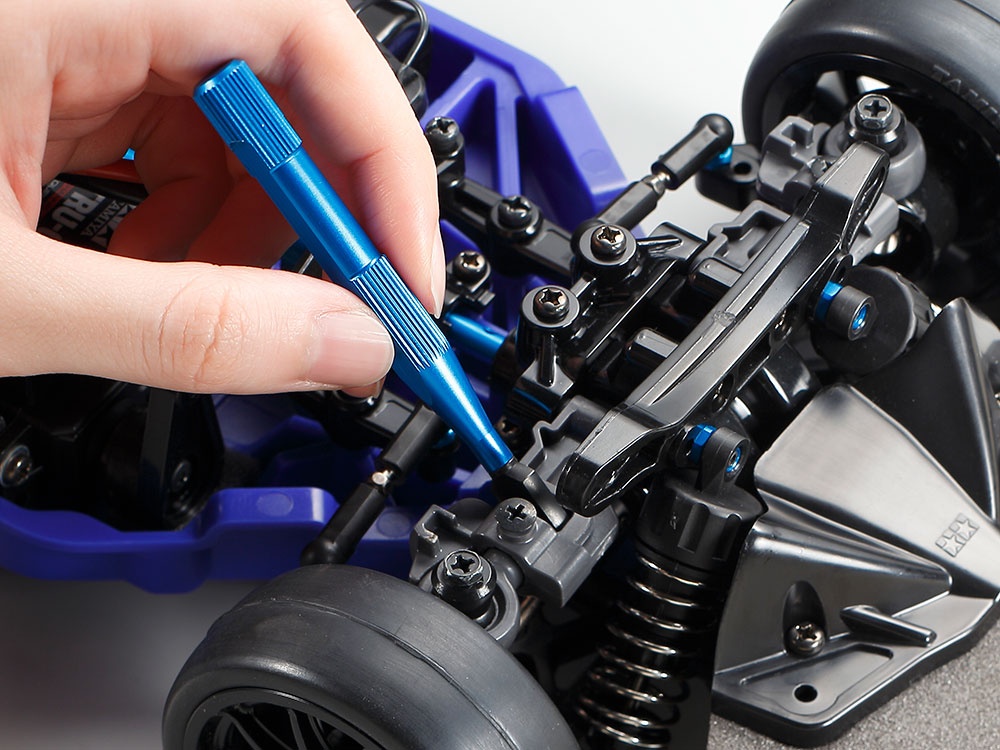

  • Adjustable Upper Arms

Specifications

  • Length: 400mm, Width: 180mm. Wheelbase: 257mm/251mm. Tire Width/Diameter: 24/64mm (Front & Rear)
  • Bathtub-type Frame
  • Shaft-Driven 4WD
  • Front/Rear Die-Cast 2-Bevel Oil-Filled Differentials
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Double Wishbone Suspension
  • CVA Super Mini Oil Dampers
  • Gear Ratio = 6.55:1 or 6.16:1

Separately Required Items (not included)

  • Body
  • Type 540 Motor (brushless is recommended)
  • 2-channel R/C system with ESC
  • Batteries for transmitter
  • Battery Pack and Charger
